PAPER BAG MACHINE

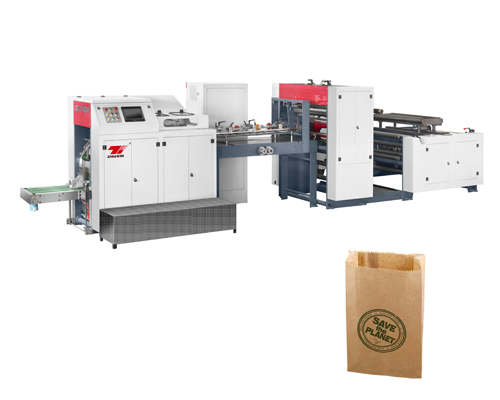

Automatic High Speed Point Tooth Food Paper Bag Making MachineAutomatic High Speed Point Tooth Food Paper Bag Making Machine

Automatic High Speed Point Tooth Food Paper Bag Making Machine



Model: ZXJD-750

Mob: 0086 18968918891
Tel: 0086-577-63081111
Fax: 0086-577-63778011
Email: admin@zhuxin.cn admin@chinazxin.com

Automatic High Speed Point Tooth Food Paper Bag Making Machine



Model: ZXJD-750
PRODUCT INFORMATION

Characterictics:

1. Suited for 40-80gsm paper.

2. Controls bag length through the human-machine interface.

3. PLC system for calculating parameters.

4. Equipped with an accurate photocell system.
5. Cut by the point cutter

Specification:


<-------- Can Move Left or Right -------->

机型

Model

ZXJD-750

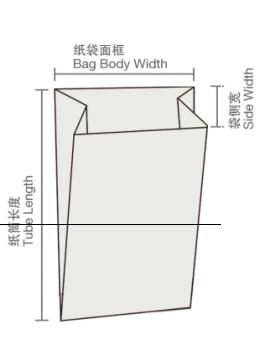

切袋长度

Length of cutting bag

160-750mm



制袋宽度

Bag width

80-320mm



插边尺寸

Insert size

20-140mm



梯口高度

Bag mouth height

15/20mm

15/20mm

纸袋速度

Bag speed

50-600pcs/min



纸料宽度

Paper feed width

200-920mm

纸料直径

Paper material diameter

  200-1000mm

纸料厚度

Paper material thickness

40-80g/m²

工作气源

Working Air Current

≥0.12m3/分钟,0.6-1.2兆帕

More than 0.12m3/ minutes, 0.6-1.2 MPa

用电功率

Electric power

380V34线  15kw

380V3 phase 4 wire 15kw

整机重量

Total weight

4000kg

外形尺寸

Machine Dimension

7600x1700x2100mm
