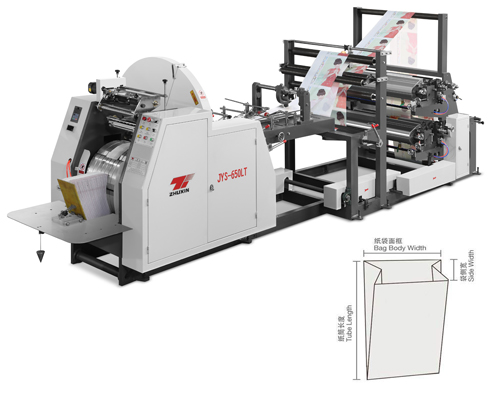

JYS-400/650850 paper bag machine with printing inline
Model | YT-800 | YT-1000 | YT-1100 |
Max material width最大印料宽度 | 800mm | 1000mm | 1100mm |
Max effective printing width有效印刷宽度 | 760mm | 960mm | 1060mm |
Range of repeat printing length 印刷品长度范围 | 2280-1000mm | 2280-1000mm | 2280-1000mm |
Printing speed 印刷速度 | 5-100pcs/min | 5-100pcs/min | 5-100pcs/min |
Machine dimensions机器尺寸 | 2000 x 2000 x 2300mm | 2000 x 2200 x 2300mm | 2000 x 2400 x 2300mm |
备注remarks:2色 two color, 4色 four color , 6色 six color.
JYS400/650/850
型号MODEL： | JYS400 | JYS650 | JYS850 |
纸张克重bag weight: | 40-80g/m2 | 40-80g/m2 | 40-80g/m2 |
切袋长度tube length: | 160-450mm | 200-650mm | 200-850mm |
制袋宽度bag width: | 80-250mm | 80-300mm | 80-350mm |
制袋速度speed: | 100-400bags/min | 100-400bags/min | 100-400bags/min |
整机重量weight: | 2200kg | 2400kg | 2600kg |
卷筒放料宽度max paper roll width: | 800mm | 900mm | 1000mm |
电机power: | 4kw | 4kw | 4kw |
机器尺寸 长x宽x高machine size (L*W*H): | 6280x1500x1800mm | 6300*1600*1900 | 6500*1700*1900 |
